TP5-ASG

1. Autoscaling Theory

Definition

https://docs.aws.amazon.com/autoscaling/ec2/userguide/AutoScalingGroup.html

An Auto Scaling group :

• is a collection of Amazon EC2 instances

  • (that are treated as a logical grouping for the purposes of automatic scaling and management)

• enables you to use EC2 Auto Scaling features :

  • such as health check replacements
  • and scaling policies.

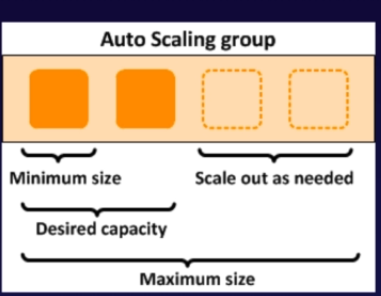

• its size (desired capacity) = number of its instances :

  • between the minimum and maximum capacity specified in scaling policies
  • adjustment possible

  • maintained by periodic health check

    • If an instance becomes unhealthy, the group terminates the unhealthy instance and launches another instance to replace it

  • multiple Availability Zones :

    • the desired capacity is distributed across them
• starts by launching enough instances to meet its desired capacity

spot vs on-demand instances

An Auto Scaling group can launch On-Demand Instances, Spot Instances, or both.

Spot Instances = Amazon EC2 capacity at steep discounts relative to On-Demand prices.

key differences :

• Spot price varies based on demand

• Amazon EC2 can terminate an individual Spot Instance (in function of its availability / price)

  • a Spot Instance is terminated -> a replacement instance is launched (to maintain the desired capacity)

3 components

1. Group

   • Logical component : webserver group or application group or database group

2. Configuration Templates

   • group uses a launch template or a launch configuration as a config template for its EC2 instances

3. Scalling option

   • Maintain current instance levels at all times
   • Scalle manually
   • Scale based on schedules
   • Scale based on demand
   • Use predictive scaling

launch configuration

We recommend that you use launch templates instead of launch configurations to make sure that you can use the latest features of Amazon EC2.

https://docs.aws.amazon.com/autoscaling/ec2/userguide/LaunchConfiguration.html

A launch configuration is an instance configuration template that an Auto Scaling group uses to launch EC2 instances.

When launch configuration creation, you specify information for the instances, including :

• the ID of the Amazon Machine Image (AMI),
• the instance type,
• a key pair,
• one or more security groups,
• and a block device mapping. .

You can specify your launch configuration with multiple Auto Scaling groups.

• one launch configuration for an Auto Scaling group at a time

• you can not modify a launch configuration after you've created it :

  • you have to recreated another and update your Auto Scaling group with it

When Auto Scaling group creation :

• specify a launch configuration,
• a launch template,
• or an EC2 instance (in this case, a launch configuration by default will be provided).

2. Autoscaling Groups Lab

ASG : Auto Scaling groups

Creating an Auto Scaling Group Using an EC2 Instance

https://docs.aws.amazon.com/autoscaling/ec2/userguide/create-asg-from-instance.html

When you create an Auto Scaling group, you must specify the necessary information to configure :

• the Amazon EC2 instances,
• the subnets for the instances,
• and the initial number of instances.

To configure Amazon EC2 instances, you can specify :

• a launch configuration,
• a launch template,
• or an EC2 instance.

When you create an Auto Scaling group using an EC2 instance, Amazon EC2 Auto Scaling creates a launch configuration for you and associates it with the Auto Scaling group.

This launch configuration :

• has the same name as the Auto Scaling group,

• and it derives its attributes from the specified instance ;

  • such as AMI ID,
  • instance type,
  • and Availability Zone.

Manual Scaling for Amazon EC2 Auto Scaling

https://docs.aws.amazon.com/autoscaling/ec2/userguide/as-manual-scaling.html

At any time, you can change the size of an existing Auto Scaling group manually. You can either :

• update the desired capacity of the Auto Scaling group,
• or update the instances that are attached to the Auto Scaling group.

Manually scaling your group can be useful when :

• automatic scaling is not needed
• or when you need to hold capacity at a fixed number of instances.

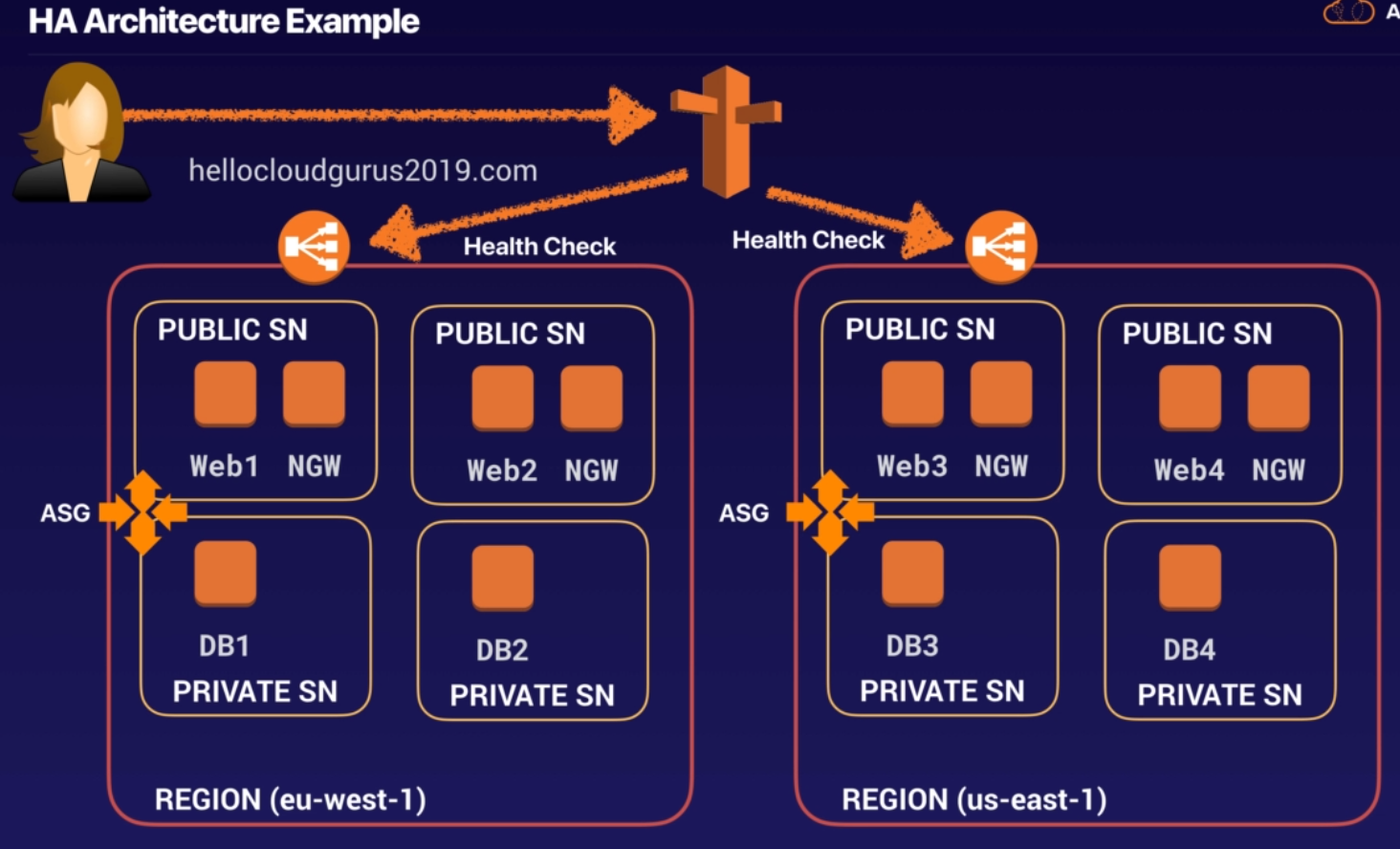

3. HA Architecture

HA : High Availability

You should always plan for failure

ASG : Auto Scalling group Each SN are in a different AZ

What is the ideal architecture for this environment, if we need a minimum of 6 instances and mustly available ?

• 3 AZ with 3 instances in each Z

synthesis

• Use multiple AZ and multiple Regions where ever you can

• MultiAZ != ReadReplicas for RDS

  • multiAZ : for disaster recovery
  • readreplicas : for performance

• Scalling out != scalling up

  • out : use autoscaling group (we add additional EC2 instances inside our group)
  • up : increase the resource inside the EC2 instance (T2macro to 6X increasing the amount of RAM or CPU)
• consider the cost elements

• there are different S3 storage classes

  • higlhy available :

    • Standard S3
    • Standard S3 infrequently access

  • less available

    • using redundancy storage
    • S3 single AZ

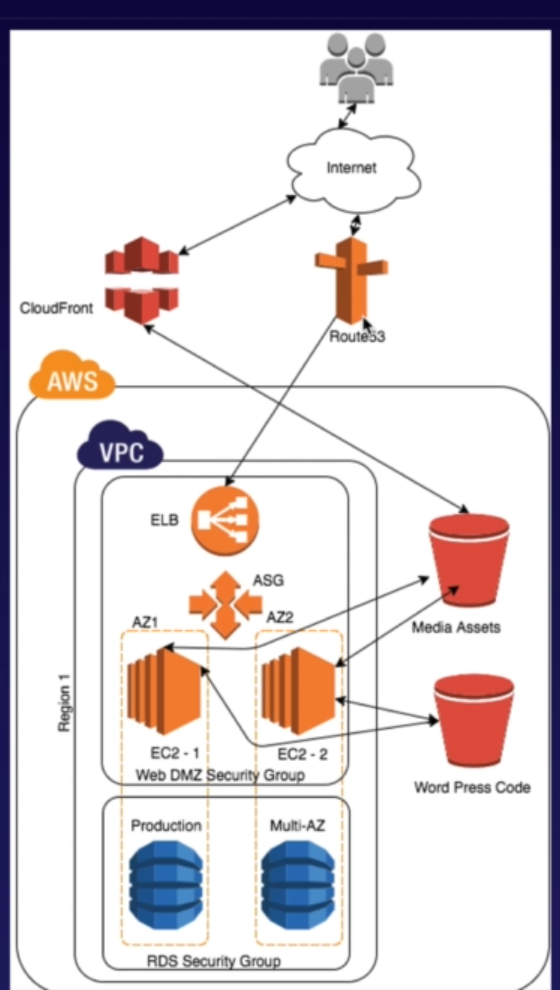

4. Building a Fault Tolerant WP - HA Word Press Site

Steps :

1. S3 bucket
2. CloudFront
3. VPC -> create a WEBDMZ security group (which allow mysql port)
4. RDS database with multi-az deployment ; no public accessible; define initial database-name
5. IAM (Identity Access Managment) -> create a new role
6. Create an EC2 instance

At the final check the

• Clound FRont
• RDS

5. Building a Fault Tolerant WP - Setting Up EC2

Steps :

1. configure the EC2 instance
2. install on the EC2 WordPress
3. create a post
4. add to this post an image
5. add a reduncancy by packing up this post to another S3 and checking the resilience between S3

6. rewrite url access

   1. edit the .htaccess file (add url rewrite rule out the cloud front)
   2. edit the httpd.conf file (allow the new url rewrite) (you can make a backup config of the folder)
7. restart the server to force the change(server httpd.service)
8. make the bucket public and edit the public access setting to allow all input traffic
9. check in chrome web explorer that the url rewrite has been well done
10. create a LoadBalancer
11. put the EC2 behind a LoadBalancer
12. Set up Route53
13. (optional) you can create a record set to save the dns domain to have a simpler url

6. Building a Fault Tolerant WP - Adding Resilience And Autoscaling

We have 2 isntances :

1. for Reading Note
2. for Writting Note

Steps :

1. edit the etc/crontab file (automating windows tasks) :

   1. Scan EC2 and copy to S3 every changes (sync to S3 with a perfect copy -> sync --delete EC2from s3to)
   2. send the image to the cloundfront ass well (sync to S3 with a perfect copy -> sync --delete EC2from s3to)
   3. trigger the update task of crontab : restart cron.service

2. Create an Autoscaling group

   1. Create a launch configuration with IAM role of S3 access
   2. Create the Autoscaling group with IAM S3 access
   3. Edit the target group from the Autoscaling group

3. edit the etc/crontab file (automating windows tasks) : 1. Scan S3 and load every changes (sync to EC2 with a perfect copy -> sync --load s3from EC2to)

   2. trigger the update task of crontab : restart cron.service

7. Building a Fault Tolerant WP - Cleaning Up

By doing a reboot you can force a failover from one AZ to another AZ

Steps

1. Reboot
2. Delete RDS database,
3. Delete Autoscaling which trigger EC2 Instance deleting (except the reading Note)
4. Delete your target group
5. Delete Application Load Balancer (which you relied to your target group)
6. Delete the EC2 instance (the Writting note)
7. Delete the cloudfront distribution
