TP8 - DynamoDB

1. Introduction to DynamoDB

Definition

DynamoDB = fast flexible NoSQL database service

Services with :

• consistent

• single-digit milisecond latency at any scale

  • stored in SSD Storage

Supports 2 data models:

1. document
2. key-value

It is serverless, integrate with lambda It avoids single point of failure (spread accross 3 distinct data centers)

2 read consistency models :

1. Eventual (defaults) : best read performance, actualisation within a second
2. Strongly

Tables

• item = column
• attributes = row

Documents can be writtent in JSON, HTML or XML

• key value = userID
• value = 123543

Primary keys

DynamoDB stores and retieves data based on a primary key

2 types of primary keys :

1. partition keys = unique attributes

   • output of the hash funciton detemrine the location of the stored data
   • no itmes can have the same partition keys

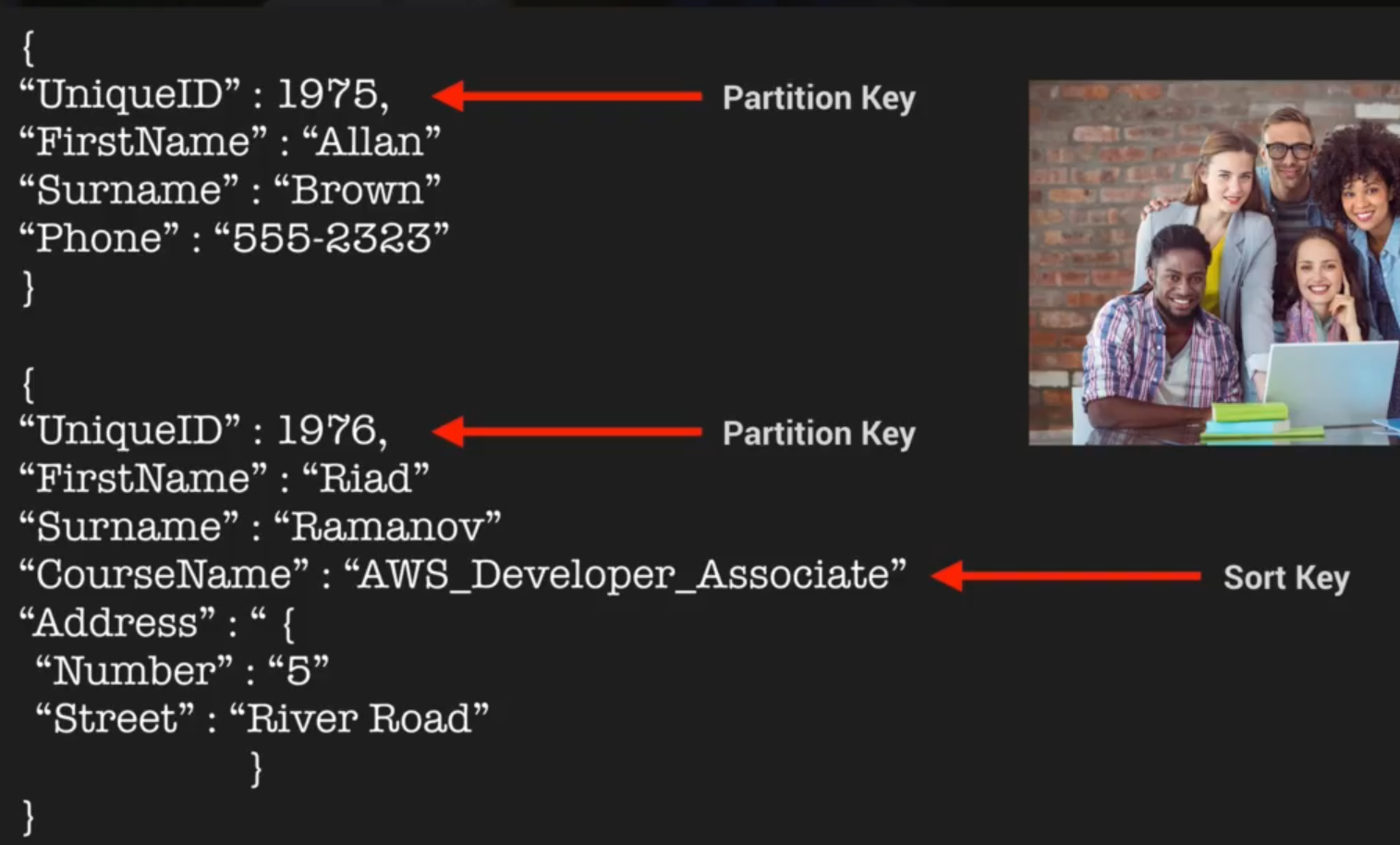

2. composite key = partition keys (userID) + sort key (timestamp of the post)

   • allow you to store multiple items with the same Partition keys

Access control

• authentification and Access Control is managed using AWS IAM
• you can create an IAM user within your AWS account which has specific permission sto access and create DynamoDB tables
• you can create an IAM role which enabes you o obtaine teporary access keys which can be used to access DynamoDB
• you can use a special IAM Condition to restrict user access to only their own records

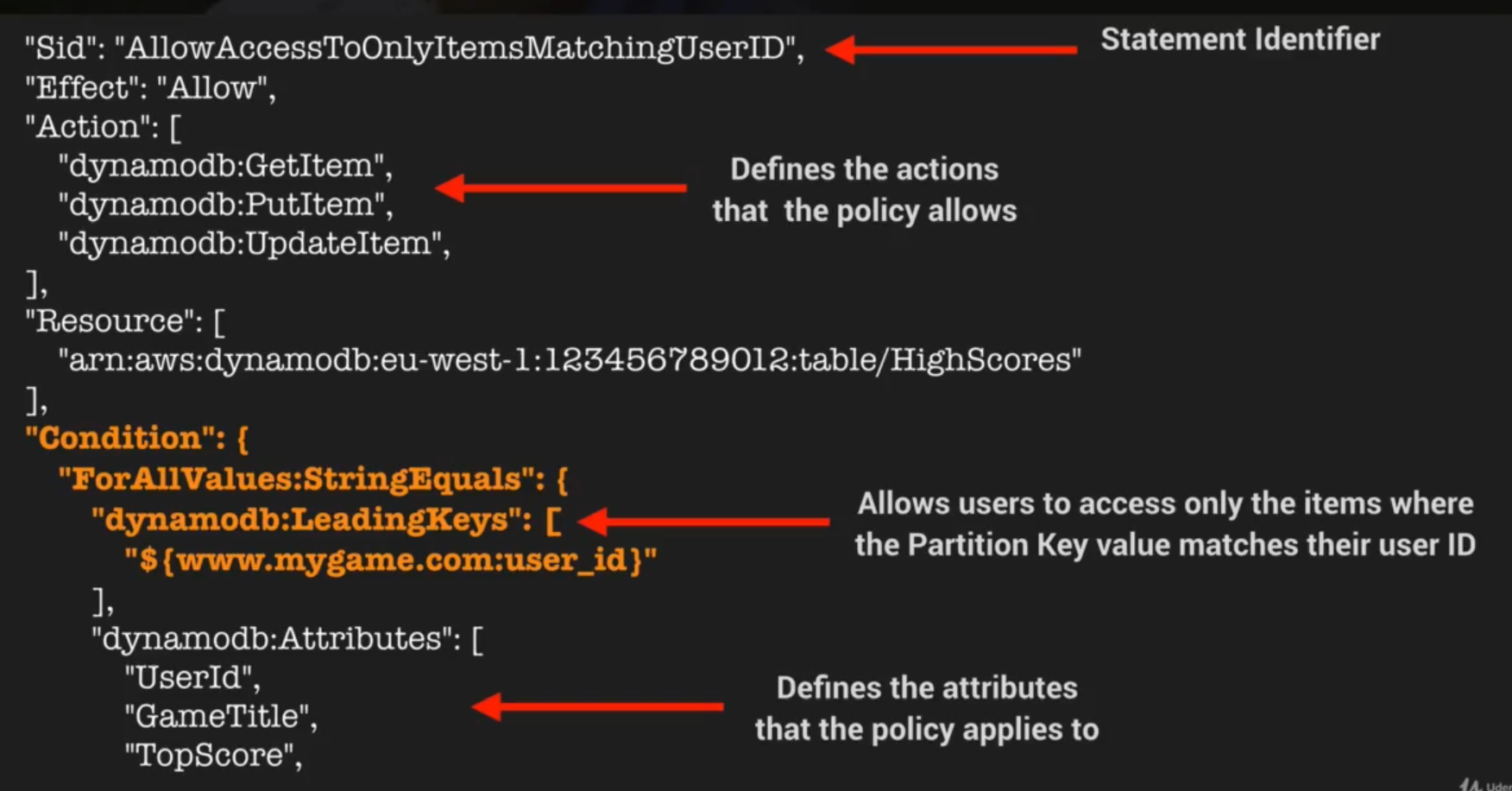

You can add a condition to an IAM Policy to allow access only to items where the partition key value matches their UserID

Partiton key = Leading Key

remember

• DynamoDB = low latency NoSQL database
• Consist of tables Items and Attributes
• Support document and key value data model
• support format are JSON XML HTML
• 2 types of primary key - Partition Key and combination of
• 2 consistency models : Strongly and Eventually

• Access is controlled using IAM policies

  • Fine grainded access control using IAM condition parameter : dynamodb:LeadingKeys to allow access only the items where the partiton key value matches their user ID

2. Creating a DynamoDB Table Lab

Steps

1. Create IAM Service Role for EC2 for DynamoDB Full Access
2. Create EC2 (by configuring instance initializing a php website)
3. Connect to EC2 by ssh
4. Install [AWS SDK for PHP version 2] (https://docs.aws.amazon.com/aws-sdk-php/v2/guide/installation.html) by downloading the composer
5. Change the region of uploaddate.php
6. Create the DynamoDB with IPaddress/dynamoDB/createTables.php

how to interact with the database using the command line ?

• we will use the IAM service role to interact with DB and make queries

  • aws dynamodb get-item --table-name XXX --region XXX --key XX
  • using the --key '{"Id" : {"N" : "205"}}'

3. Indexes Deepdive

index definition

• In SQL database : an index is a data structure which allows to perform fast queris on specific columns in a table (column selection)

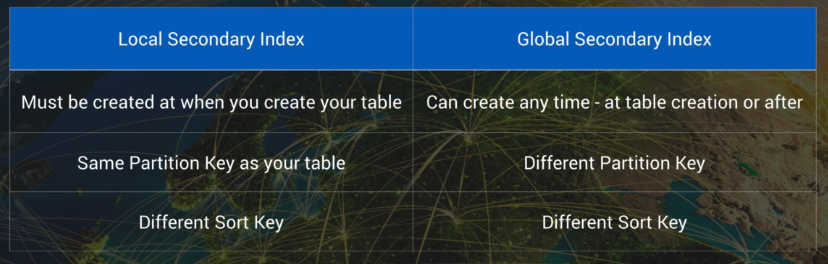

• In DynamoDB : 2 types of index

  • Local Secondary index

    • can only be created at the table creation but not after
    • same partition key than the original table but a different sort key -> different view
    • increase the time queries based on this sort key

  • Gloabal Secondary Index

    • can be created at and after table creation
    • different partition and sort key
    • increase the time queries of all data

4. Scan vs Query API Call

A query and a scan return all the attibutes of the items but you can use projection expression to select a specific attributes.

Query

A query finds items in a table based on the primary key attributes and a distinct value to search for.

• Result are always sorted by the sort key (numeric order, then ASCII character)
• Reverse the ascending order is possile with ScanIndexForwardparameter=F

By default queries are eventually consistent

Scan

A scan operation examines every item in the table By default returns all the attributes

Comparison

	Query	Scan
Efficiency	+	-
Dump the entire table ?	no	yes
Can use up the provisioned throughput ?	no	yes

improve performance

• setting smaller page size
• larger number of small operation
• avoid using scan operation

of scan

share your datable into segments and scan them in parallel

5. DynamoDB Provisioned Throughput

DynamoDB Provisioned Throughput is measured in Capacity Units

When you create a tabl, you specify your requirements in terms of Read Capacity Units and Write Capacity Units.

• 1 x Write capacity Unit = 1 x 1Kb write per second

• 1 x Read capacity Unit

  • = 1 x 4Kb Strongly consistent read
  • = 2 x 4Kb Eventually consistent read

steps to know how many do we need

1. calculate how many Read CU needed for each read : Size of each item / 4 Kb
2. Rounded-up
3. Multiply by the number of read per second

6. DynamoDB On Demand Capacity

• Charges aply for :

  • reading
  • writting
  • storing
• on demand, you do not need to specify your requirements
• DynamoDB instantly scales up and down based on the activity of you applications
• great for unpredictable workloads
• you want to pay for only what you use

pricing model shoul I use ?

you can change of pricing model once a day.

7. DynamoDB Accelerator (DAX)

definition

*DAX = is a fully managed clustered in-memory cached for DynamoDB

Delivers up to a 10x read performance improvments = microsecond performance for millions of request per sec (Christmass or Black Friday) -> Ideal for Read-Heavy and bursty workloads

how it works

If the item is not available (cache miss) then DAX performs an Eventually Consistent GetItem operation against DynamoDB

NOT suitable for

• NOT suitable for application requiring strongly consistent reads
• write intensive application
• few read operations
• application that do not need microseconds response times

9. DynamoDB Transactions

ACID transactions : Atomic (single unit, all or nothing operations) Consistent (must let datatable in a valid state) Isolated (not dependency in transaction) Durable (when a transaction have been commited it will remain in the data table)

Read or write multiple items across multiple tables as an all or nothing operations.

10. DynamoDB TTL

definition

TTL : Time To Live defines an expiry time for your data

It is relevant to remove old data (session data event logs ...) and so reduce cost storage data

It is expressed as POSIX (Unix Time = ) EpochConverter L'heure Unix ou heure Posix (aussi appelée Unix timestamp) est une mesure du temps basée sur le nombre de secondes écoulées depuis le 1er janvier 1970 00:00:00 UTC, hors secondes intercalaires. Les quatre premières lettres forment l’acronyme de Portable Operating System Interface (interface portable de système d'exploitation), et le X exprime l'héritage UNIX.

select items on TTL

steps :

1. check your IAM user permissions (aws iam get-user)
2. create a sessionData table (aws dynamodb create-table)
3. populate sessionData table (aws dynamodb batch-write-item)

11. DynamoDB Streams

definition

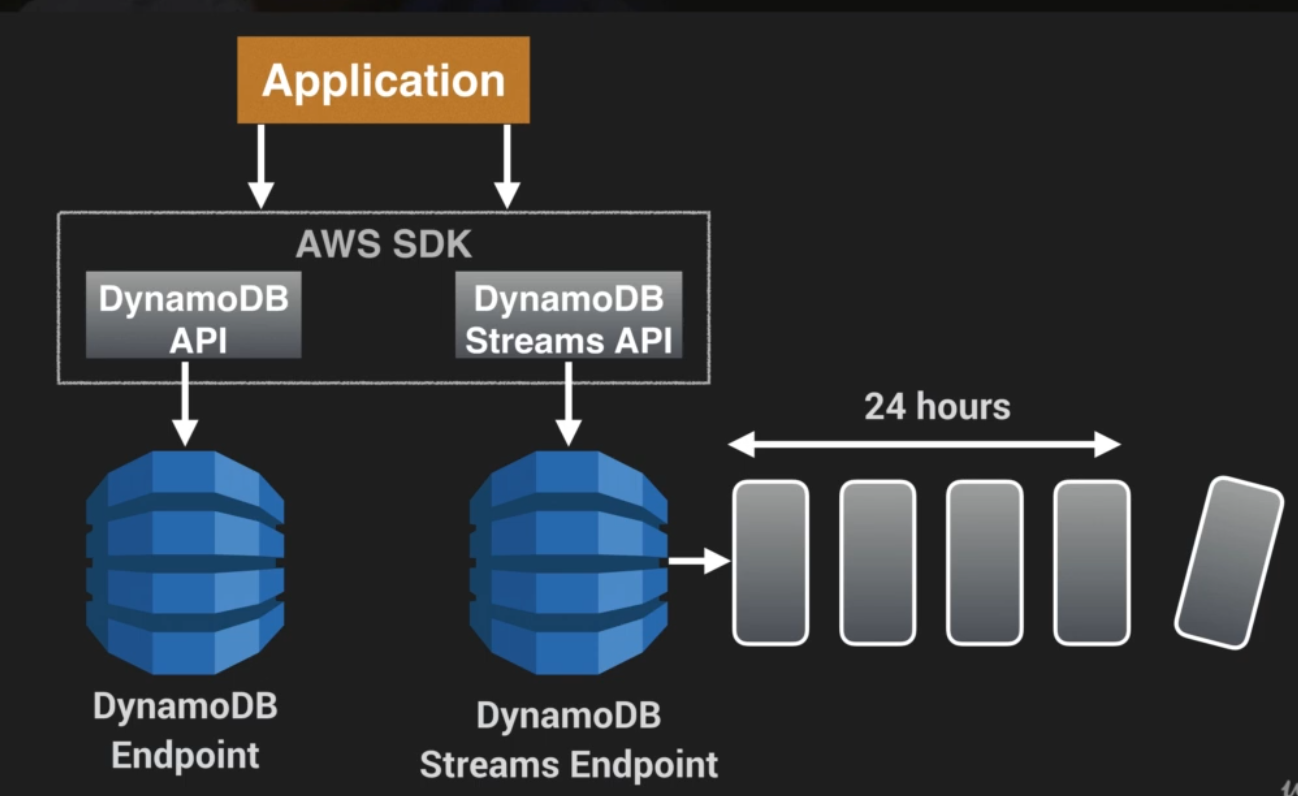

It s a time ordered sequece (or streams). So any modification at the item level (insert update, delete) will be saved in the DDB streams with a encrypted log during 24h. They are used to trigger event or lambda event based on a change of the DDB table By default the primary key is recorded. Before and After images can be captured.

The DDB endpoint is different than DDB streams endpoint

12. Provisioned Throughput Exceeded & Exponential Backoff

If you see Provisioned Throughput Exceeded error it means the number of request is too high

Provisioned Throughput Exceeded exception

If you request rate is too high for the read / write capacity provisionned on you DDB table. SDK will automatically retries requests untill successful

exponential backoff

If we do not use SDK, we can :

• reduce the request frequency
• use the exponential backoff

Exponential backoffs improves flow by retrying request using progressively longer waits (10 20 40 80 ms...) If the waiting exceed 1min, your request may exced the throughtput of your red/Write capacity.
